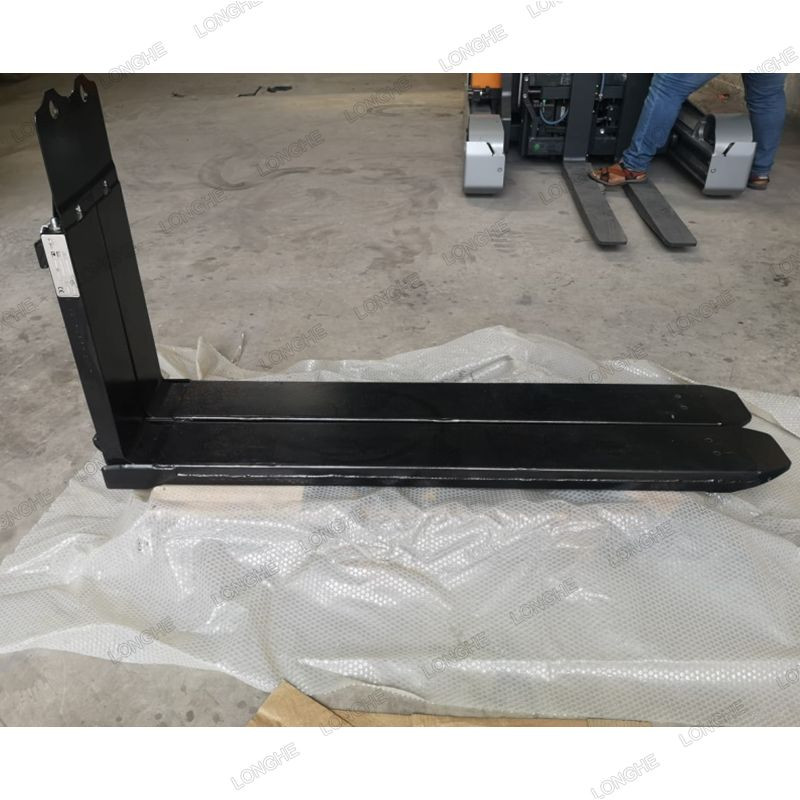

Telescopic Fork SSC25E-B202

Артикул: SSC25E-B202
(0 отзывов)
Под заказ
Цена по запросу
Добавить в сравнение
Different with common forks hooked-on version, the telescopic forks can enlarge its length (Extend or retract) with aid of hydraulic circuit. Widely applied in the operation of double rack in warehouse especially for handing the load on second row rack or loading (unloading, stacking) from lateral side of lorry.
Different with common forks hooked-on version, the telescopic forks can enlarge its length (Extend or retract) with aid of hydraulic circuit. Widely applied in the operation of double rack in warehouse especially for handing the load on second row rack or loading (unloading, stacking) from lateral side of lorry.
ТипTelescopic Fork
НазваниеTelescopic Fork
Вес162 кг
Вертикальный центр тяжести VCG(мм)29
Класс крепленияII
Толщина основания ET(мм)45
Грузоподъемность/ц.т (кг/мм)2500@600
Carrying Area Section Dimension W1/W2xS(mm)132/140x57
Fork Length Extended Range A-B(mm)1200-2050
Fork Shank Plate Thickness C(mm)45
Horizontal Center of Gravity (Retracted). HCG1(mm)426
Horizontal Center of Gravity (Extended). HCG2(mm)623
Pressure (Bar). Rated / Max160/250
Hydraulic Flow(L/min). Min / Rec / Max16/21/29
